State machines in Zephyr using C++ boost::sml
The Zephyr OS does provides a state machine framework which is really flexible and easy to use, I don’t really have anything against it. I did have the chance recently though to do some evaluations of state machine libraries for a C++ codebase and came to the conclusion that the boost::smp library was a great fit for what was needed at the time. If implementing a state machine pattern in a C++ codebase is on your radar I would encourage you to take the time to review the rationale and consider it.
I got curious about employing the same library in Zephyr based projects, and wrote a bit of code to test it out. Before you shout embedded C++ BOOST, who are you kidding, this is a header only, really resource efficient approach. Modern C++ brings a lot of advantages to embedded system programming and has been rather unfairly seen as the bloated cousin of C in some circles, particularly when you add the word boost. While this sentiment is probably less popular now, I still run into it from time to time. I thought a quick dive into using modern C++ with a modern (C based) embedded OS might be interesting.
I won’t spend a lot, well any really, time going through why/what/how a state machine. There are plenty of resources around to help you answer these questions, and I am sure you’ll find out eventually it’s all state machines, all the way down.
The model
The simple state machine I decided to model is a light switch, with a dimming function. There are four input events
On- Turn the light on, at maximum brightnessOff- Turn it offUp- Increase the brightness, to a maximum, if off restore the last brightnessDown- Decrease the brightness, if at minimum turn it off

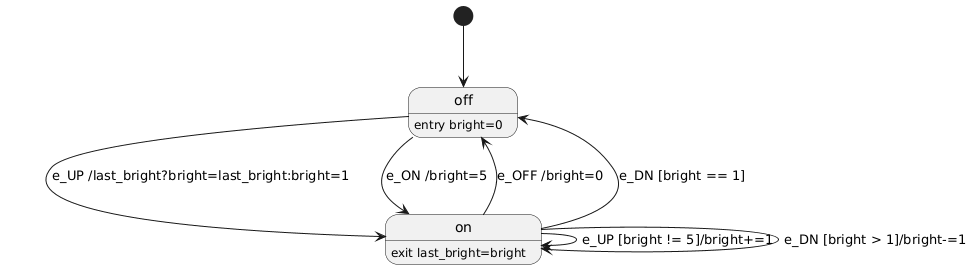

There are two states, On and Off and a brightness value. As a UML diagram it looks like this …
Full disclosure, I used the PlantUML example from boost::sml to generate the PlantUML code from the state transition table .. self documenting! With a bit of a tidy up the PlantUML generated looked like this.
[*] -> off
off -> on : e_ON /bright=5
off -> on : e_UP /last_bright?bright=last_bright:bright=1
on -> on : e_UP [bright != 5]/bright+=1
on -> off : e_OFF /bright=0
on -> on : e_DN [bright > 1]/bright-=1
on -> off : e_DN [bright == 1]
off: entry bright=0
on: exit last_bright=bright
Code
My github page has the code in two separate repositories if you want to try it out. The first is a fork of the boost::sml repo where I have added a /zephyr directory with a few bits to allow the library to be imported as a Zephyr module. You don’t really have to do much with this, but you could have a look if you are interested in how to make a simple Z module.
The other one contains the Zephyr application, and west manifest to import Zephyr and the boost::sml library. It’s README gets you setup to build and test it out.
The meat of the job is done by the following, from main.cpp, 60 odd lines of code.
// Four events
namespace {
struct e_ON { static constexpr std::string_view name = "On"; };
struct e_UP { static constexpr std::string_view name = "Up"; };
struct e_DN { static constexpr std::string_view name = "Down"; };
struct e_OFF { static constexpr std::string_view name = "Off"; };
// Data for each light context
struct lt_ctx {
int bright = 100000;
int last_bright = 0;
};
struct dimmable_machine {
auto operator()() const noexcept {
using namespace sml;
// clang-format off
return make_transition_table(
*"Off"_s + event<e_ON> / [](lt_ctx& lc){ lc.bright = 5; } = "On"_s
, "Off"_s + event<e_UP> / [](lt_ctx& lc){ lc.bright = lc.last_bright?lc.last_bright:1;} = "On"_s
, "On"_s + event<e_UP> [!{return lc.bright < 5; }] / [](lt_ctx& lc){ lc.bright++; }
, "On"_s + event<e_DN> [!{return lc.bright > 1; }] / [](lt_ctx& lc){ lc.bright--; }
, "On"_s + event<e_DN> [!{return lc.bright == 1; }] / [] {} = "Off"_s
, "On"_s + event<e_OFF> / [] {} = "Off"_s
, "Off"_s + sml::on_entry<_> / [](lt_ctx& lc){ lc.bright = 0; }
, "On"_s + sml::on_exit<_> / [](lt_ctx& lc){ lc.last_bright = lc.bright; }
);
// clang-format on
}
};
} // namespace
int main() {
using namespace std;
// Event instances
e_ON ON;
e_OFF OFF;
e_UP UP;
e_DN DN;
// A vector of events to run
vector< variant<e_ON, e_OFF, e_UP, e_DN> > evts = {
ON, OFF, UP, /* 5, 0, 5 */
DN, DN, DN, /* 4, 3, 2 */
OFF, UP, UP, UP, UP, UP, /* 0, 2, 3, 4, 5, 5 */
DN, DN, DN, DN, DN, DN, /* 4, 3, 2, 1, 0, 0 */
UP, OFF, ON, OFF /* 1, 0, 5, 0*/
};
// Context data for a dimmable light
lt_ctx ct{};
//Create a light with the context data
sml::sm<dimmable_machine> sm{ct};
// Run through the states ...
sm.visit_current_states([](auto state) { cout << "Light started @ " << state.c_str() << std::endl; });
for(auto& v: evts) {
visit([&sm](const auto& e){sm.process_event(e); cout << "Event \"" << e.name; }, v);
cout << "\"\tLevel " << ct.bright << "\tState ";
sm.visit_current_states([](auto state) { cout << state.c_str() << std::endl; });
}
}
Output and analysis
Running the above in qemu gives the following output1;
*** Booting Zephyr OS build v3.7.0 ***
Light started @ Off
Event "On" Level 5 State On
Event "Off" Level 0 State Off
Event "Up" Level 5 State On
Event "Down" Level 4 State On
Event "Down" Level 3 State On
Event "Down" Level 2 State On
Event "Off" Level 0 State Off
Event "Up" Level 2 State On
Event "Up" Level 3 State On
Event "Up" Level 4 State On
Event "Up" Level 5 State On
Event "Up" Level 5 State On
Event "Down" Level 4 State On
Event "Down" Level 3 State On
Event "Down" Level 2 State On
Event "Down" Level 1 State On
Event "Down" Level 0 State Off
Event "Down" Level 0 State Off
Event "Up" Level 1 State On
Event "Off" Level 0 State Off
Event "On" Level 5 State On
Event "Off" Level 0 State Off
I am not going to spend a lot of time on the performance aspects, although it would be interesting to compare it to Zephyr’s bundled SMF, and there is a good comparison of different approaches on boost::sml’s page. In terms of resource use though the ram and rom reports are a bit interesting. They are too big to fully reproduce but if you have built the demo yourself you can run them using west, west build -t ram_report and similarly west build -t rom_report.
Excerpts from the rom report show not much impact of including boost::sml and the whole main function.
├── WORKSPACE 586 0.42% -
│ ├── boost-sml 126 0.09% -
│ │ └── include 126 0.09% -
│ │ └── boost 126 0.09% -
│ │ └── sml.hpp 126 0.09% -
│ │ ├── _ZN5boost..vRKSB_ 38 0.03% 0x80003390 text
│ │ ├── _ZN5boost..vRKSB_ 38 0.03% 0x800033b6 text
│ │ └── _ZN5boost..vRKSB_ 50 0.04% 0x8000335e text
│ └── smp_z_demo 460 0.33% -
│ └── src 460 0.33% -
│ └── main.cpp 460 0.33% -
│ └── main 460 0.33% 0x800033dc text
I don’t pretend to fully understand the mechanics but using the power of C++ meta programming results in the whole machine the WORKSPACE total being 586 bytes in code. That seems impressive, of course there is overhead in introducing the C++ libs, but if your code was using it anyway, you have paid that price.
The ram report has nothing to say about any storage being used, which makes sense as in the code above I’ve got all of the instance variables on main’s stack. Moving the events and the context into global variables and running the ram report again shows;
│ ├── _ZGVZN5boost..3str 8 0.04% 0x80021010 bss
│ ├── _ZZN5boost..3str 42 0.19% 0x80021480 bss
├── WORKSPACE 20 0.09% -
│ └── smp_z_demo 20 0.09% -
│ └── src 20 0.09% -
│ └── main.cpp 20 0.09% -
│ ├── ct 8 0.04% 0x80022be0 datas
│ └── evts 12 0.05% 0x800214b8 bss
So … maybe 70 odd bytes in RAM. It is important to note that by moving the context like this I have made it async unsafe, there is no protection around access to the context.
Conclusions
This is just all fairly back of the envelope, but it doesn’t seem that C++ has to be the hungry resource sucking beast that it gets made out to be. Of course this is a trivial example, but not that far removed from the sort of machines an embedded system has to run. If you can introduce a pattern like this for not much overhead, with the added benefits of clarity in code, ease of maintenance and strong type and memory safety … seems like something we should all at least look at.
-
Probably could have spent more time on formatting that, but I am an embedded guy, wallpaper has never been my thing. ↩︎
